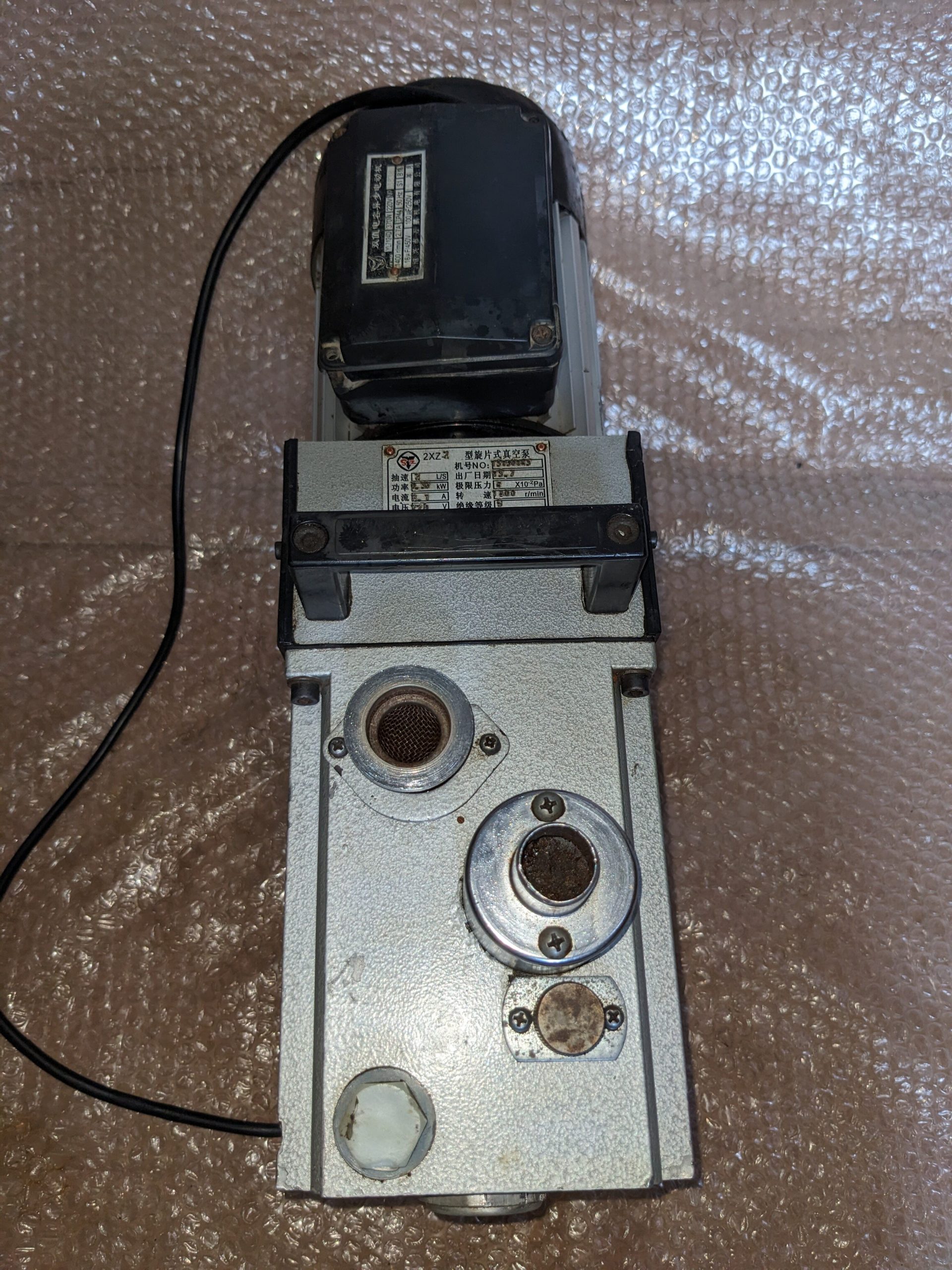

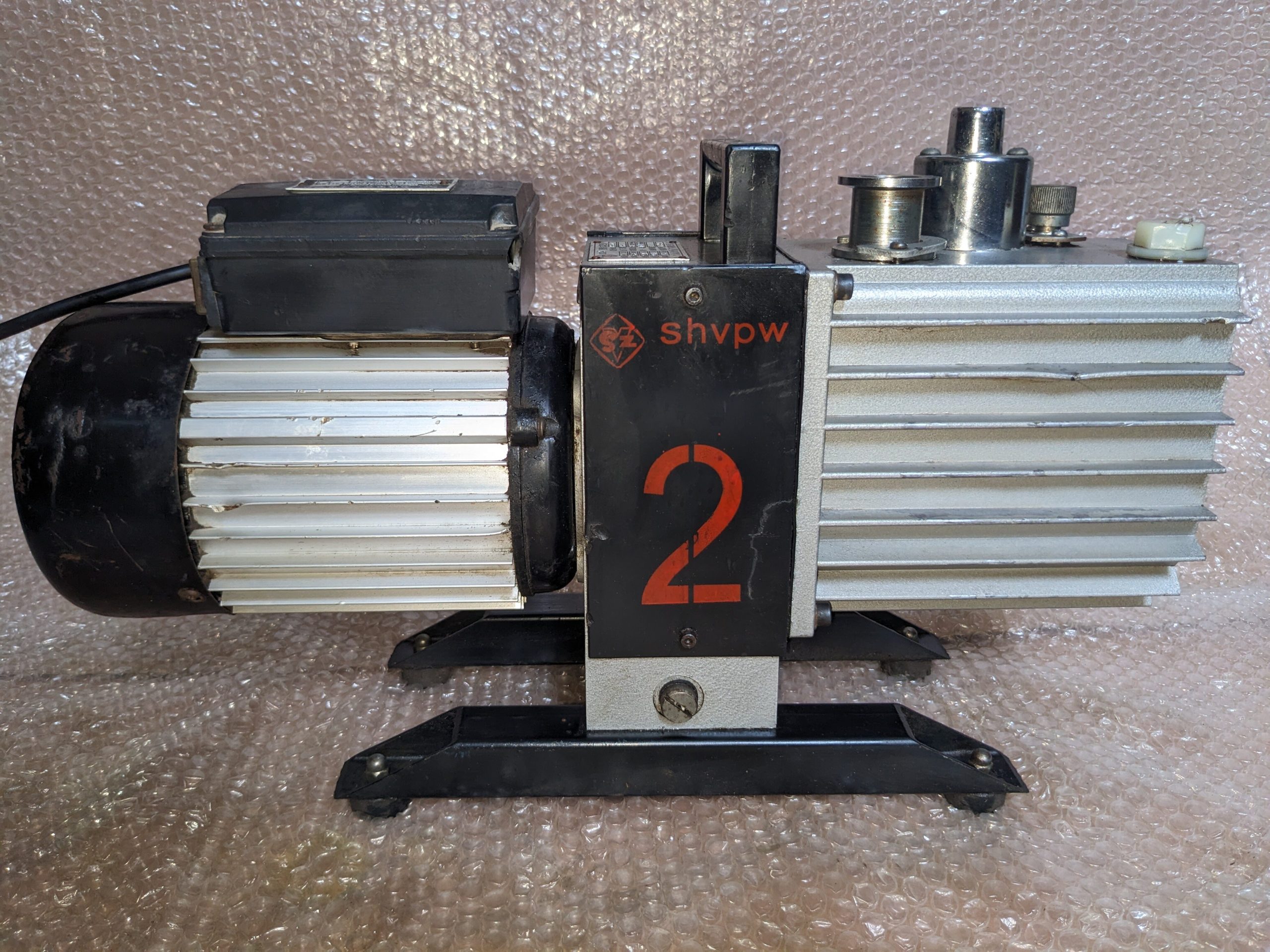

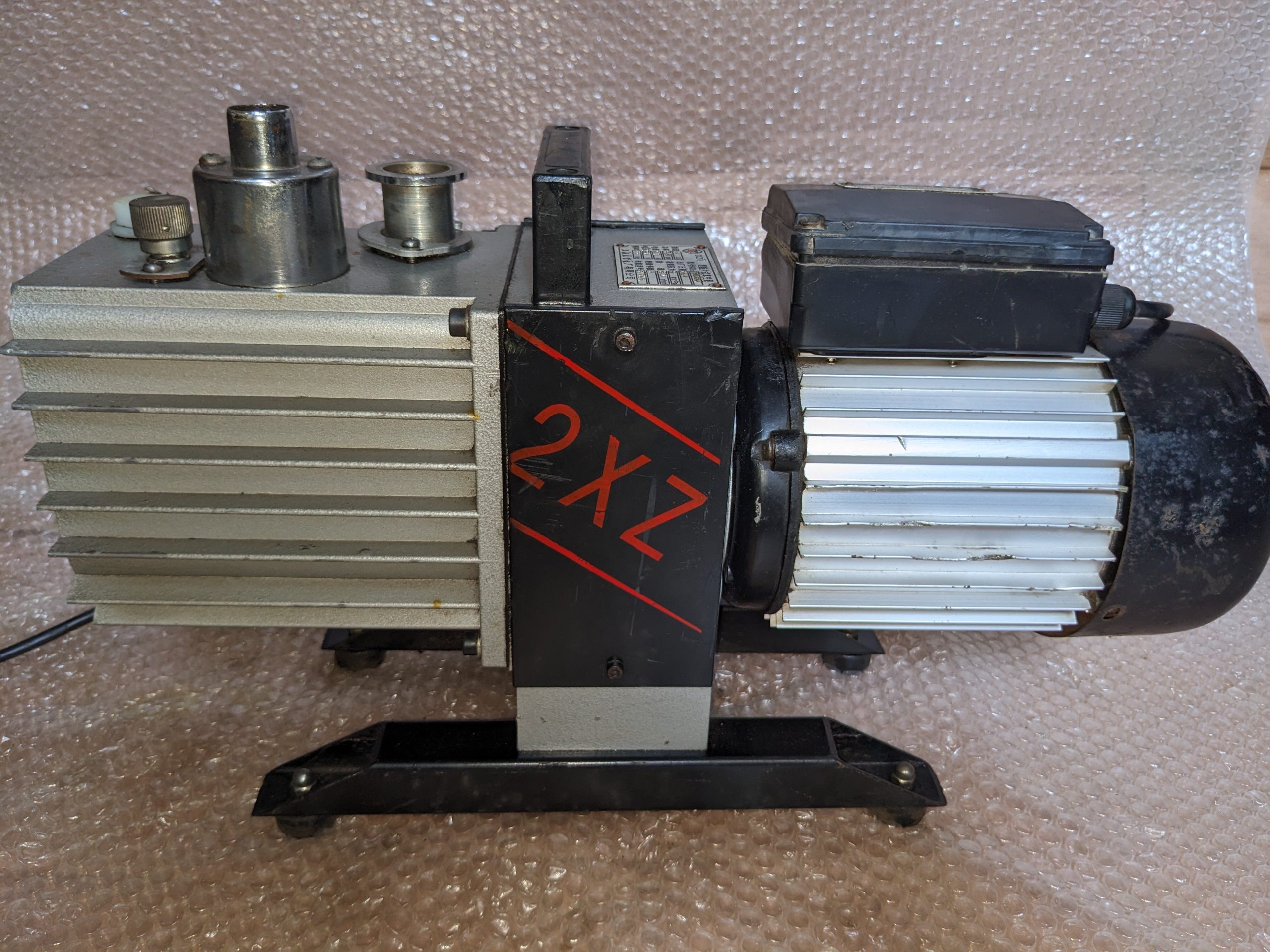

The SHVPW 2XZ 2L/s Vacuum Pump offers high-speed, reliable vacuum performance with a flow rate of 120L/min. Designed with a double-level high-speed straight-connected structure, this pump effectively separates incoming and exhaust ports, ensuring efficient vacuum creation. Equipped with a gas town valve, the 2XZ pump extends the use time of pumping oil and prevents oil-water mixing.

Ideal for both standalone and integrated use in high vacuum systems, the 2XZ pump boasts a small size, light weight, and low noise, making it perfect for a variety of applications. With measures to prevent refoulement and oil leakage, it guarantees a clean and safe working environment.

Specifications:

• Flow Rate: 2L/s (120L/min)
• Type: Double-level high-speed straight-connected structure
• Inlet Pressure Range: Continuous operation under air intake pressure < 1333Pa
• Operating Temperature Range: 5℃ – 40℃
• Noise Level: Low
• Oil Type: Clean SY1634-70 Vacuum pump oil No. 1
• Power Supply: Ensure wiring matches motor sign, with correct rotation direction
• Maintenance: Check oil level before each start

Key Features:

• ✅ Efficient double-level vacuum creation
• ✅ Gas town valve extends oil life
• ✅ Compact and lightweight
• ✅ Low noise operation
• ✅ Prevents oil leakage and refoulement
• ✅ Suitable for high vacuum systems
• ✅ Easy start-up in atmospheric or vacuum conditions

Enhance your vacuum operations with the SHVPW 2XZ 2L/s Vacuum Pump, a reliable and efficient solution for both industrial and laboratory settings.
