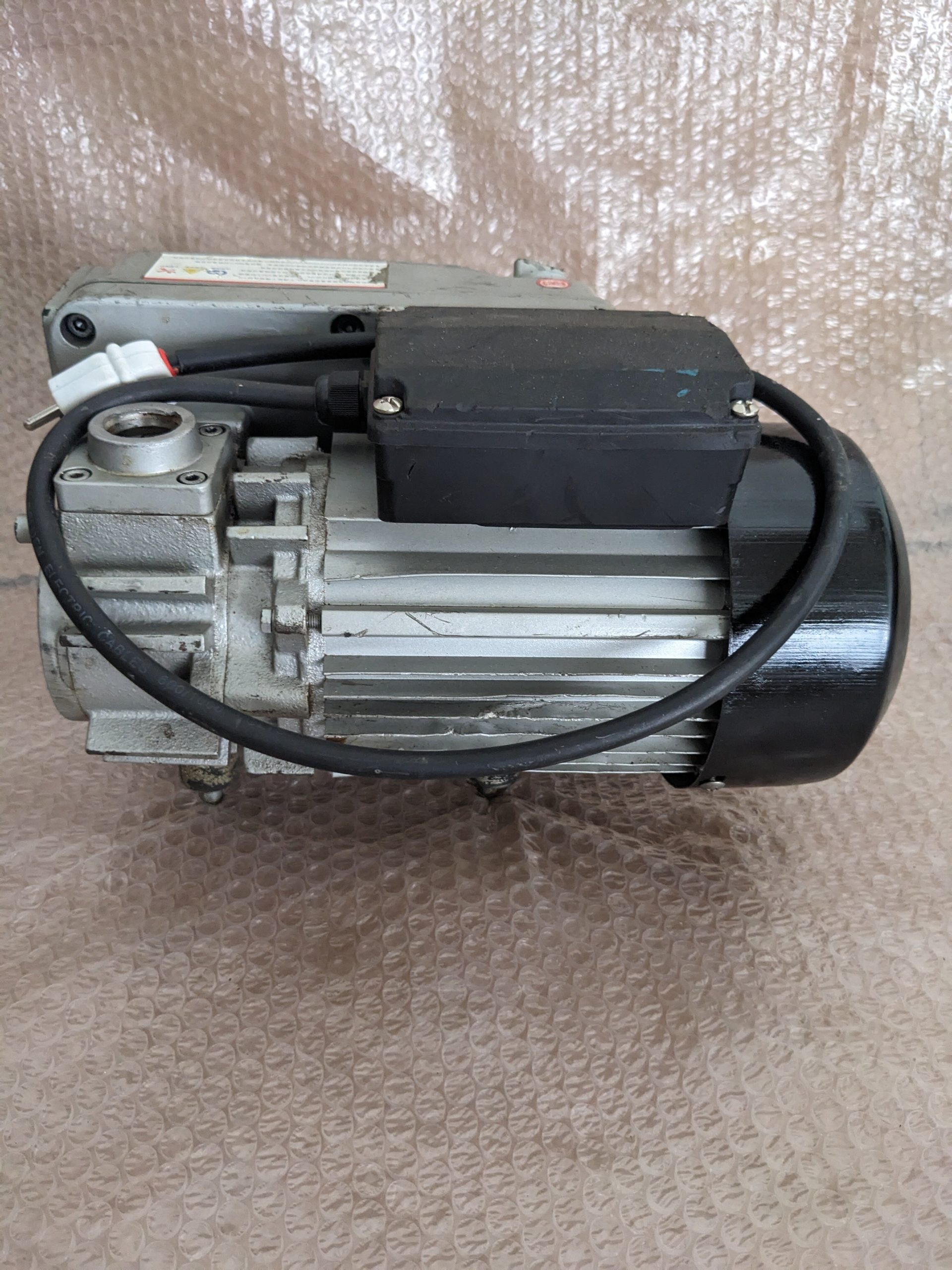

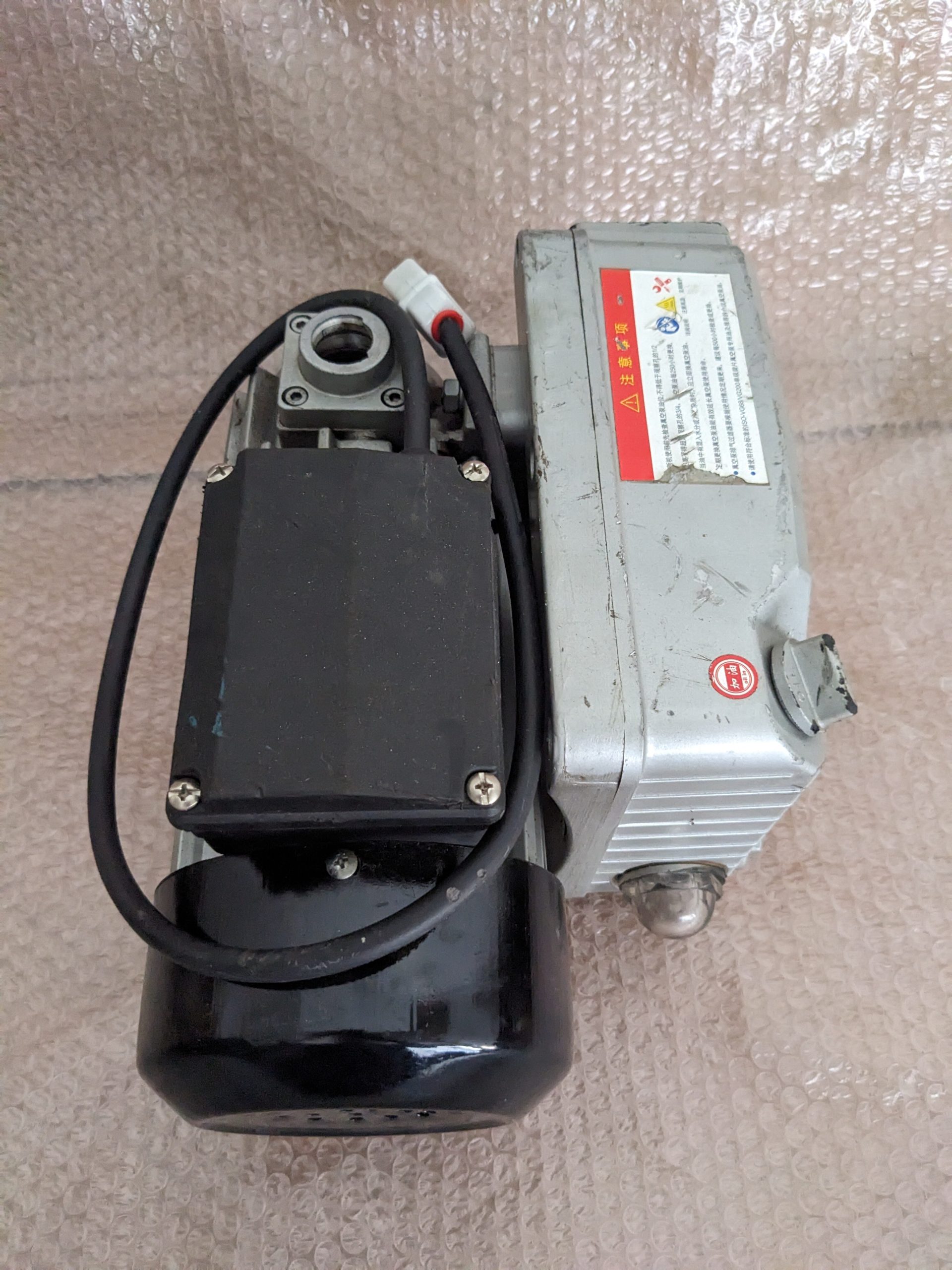

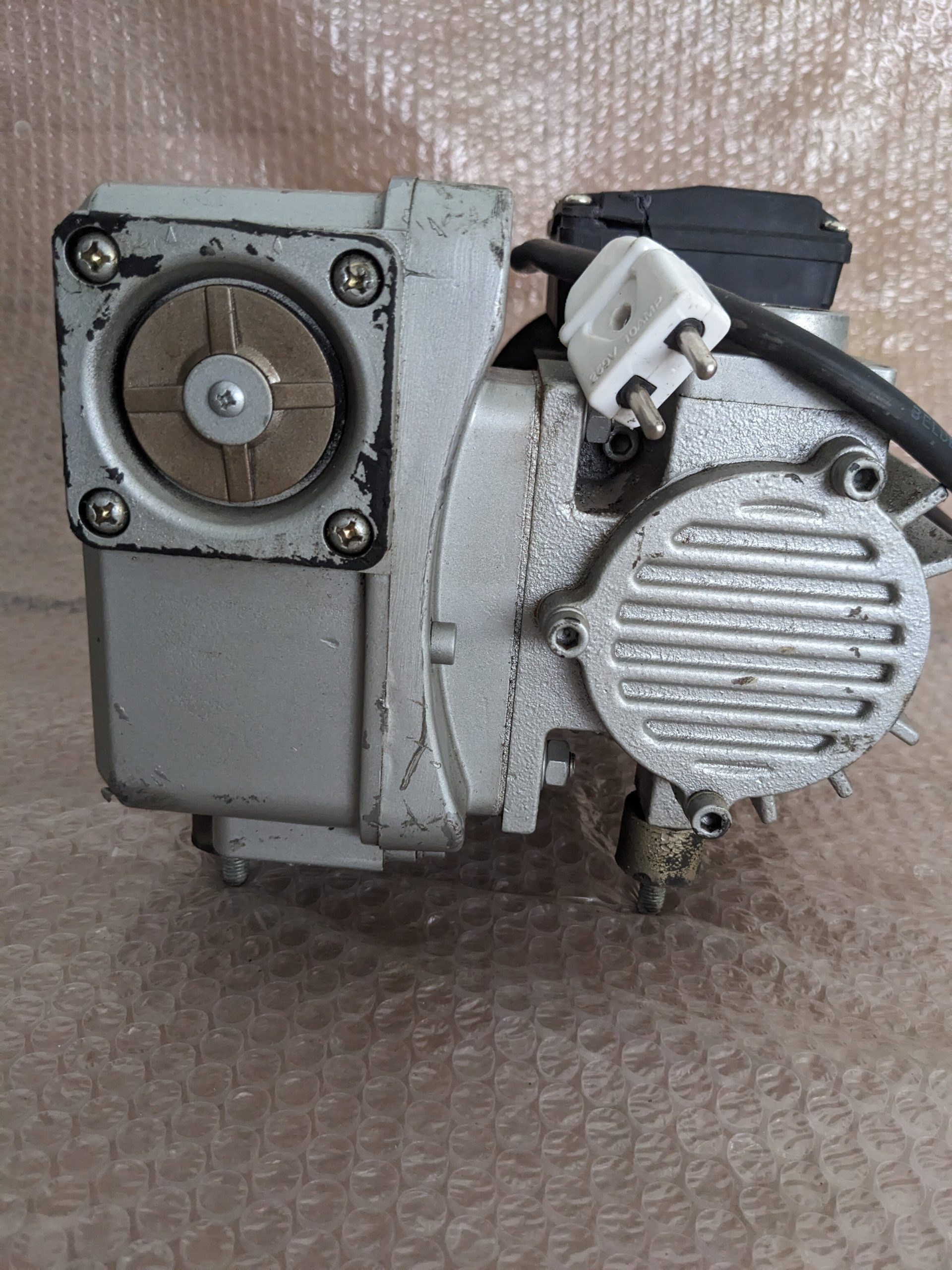

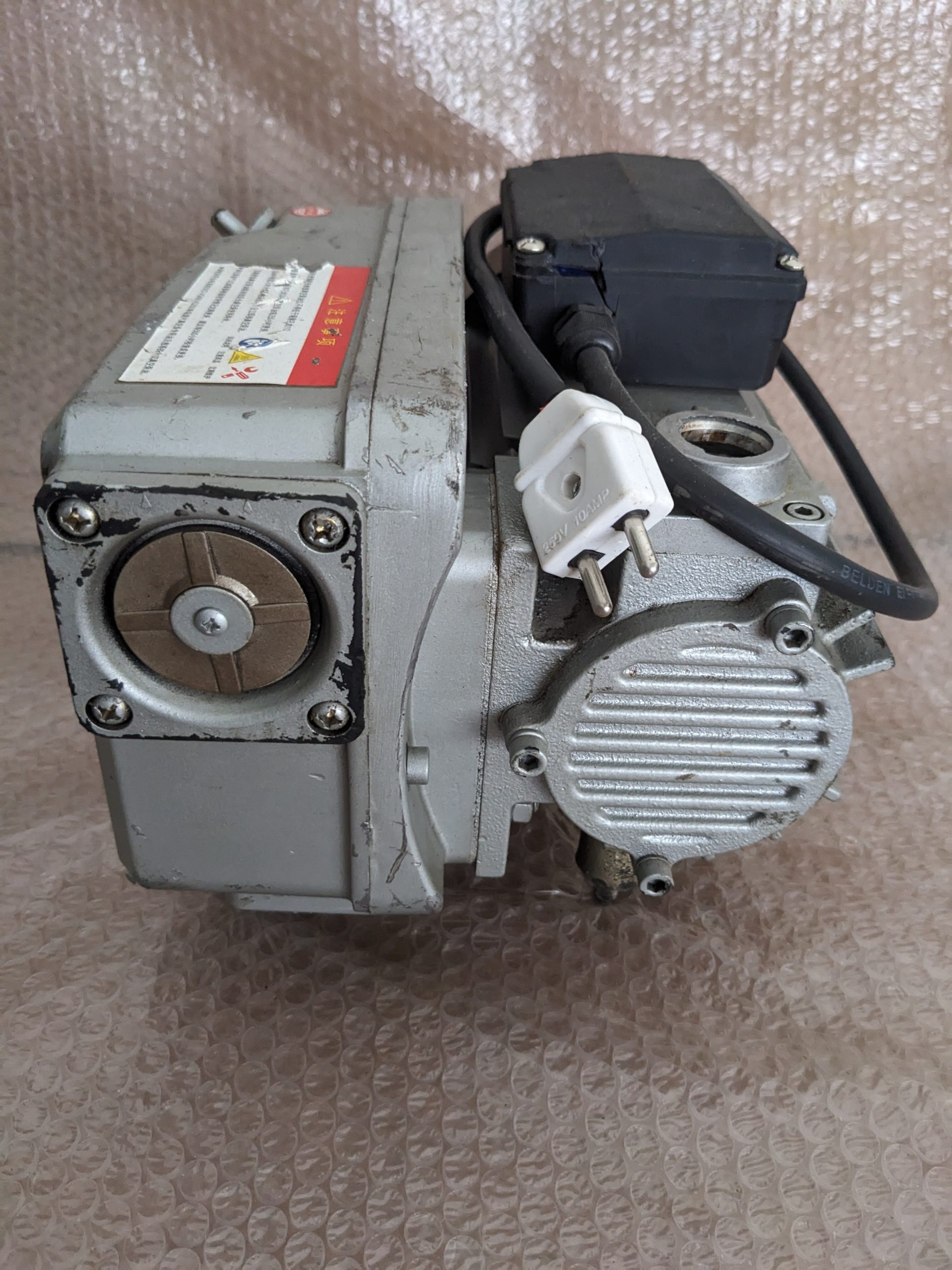

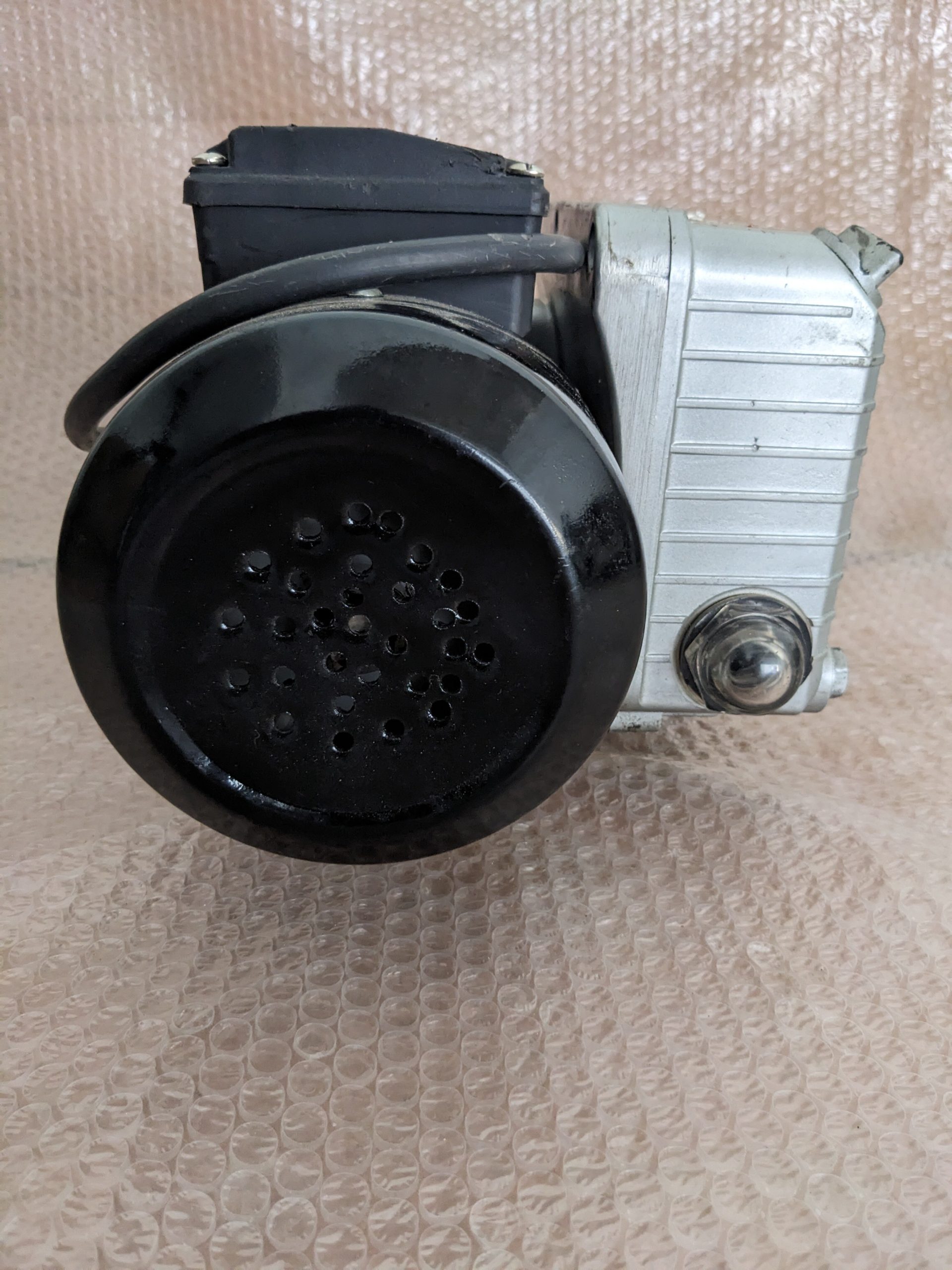

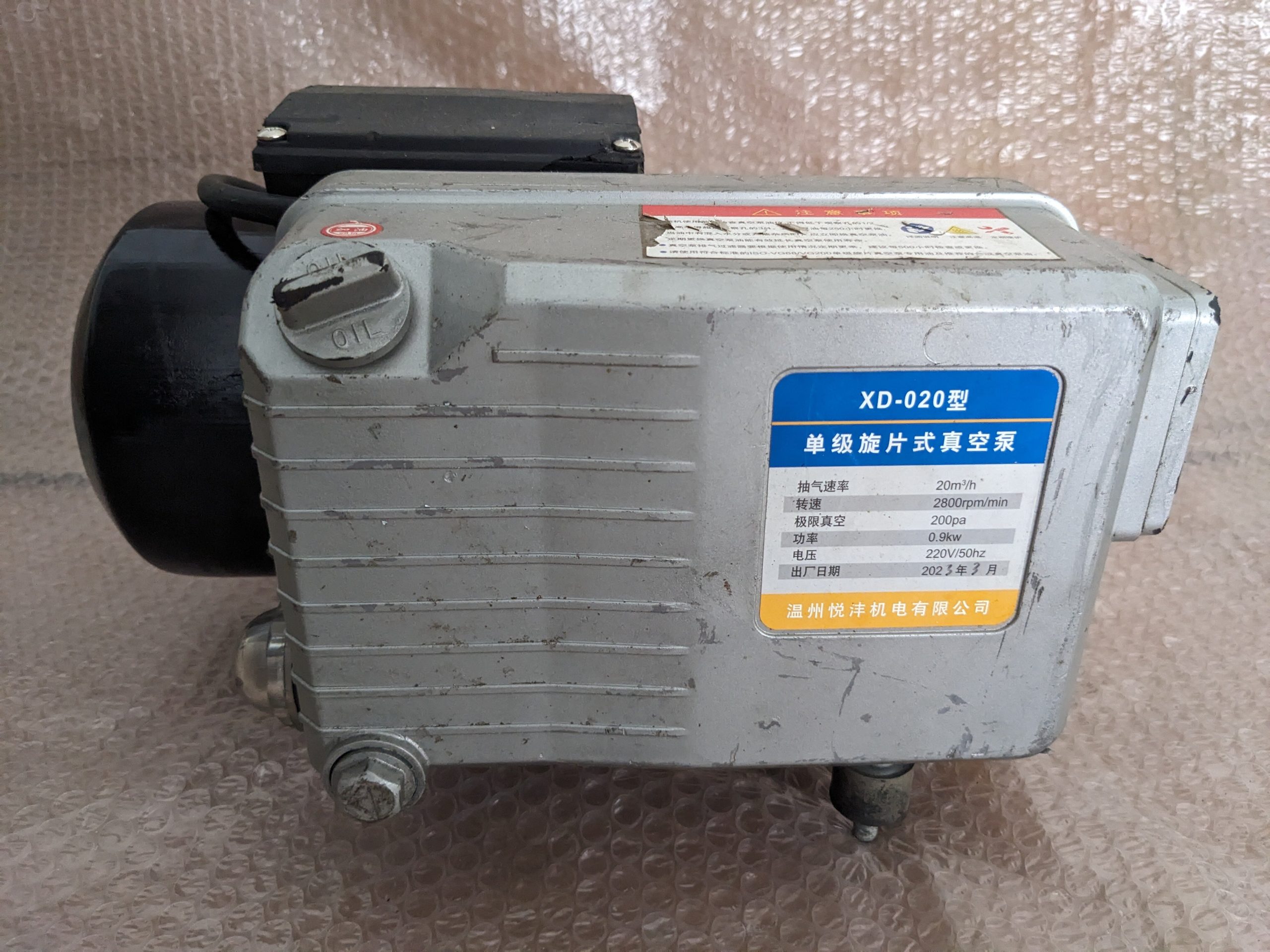

The XD-020 Oil Lubricated Vacuum Pump is a high-performance solution designed for low and medium vacuum applications. With a powerful motor of 0.75 kW and a pumping rate of 20 m³/h, this vacuum pump ensures exceptional performance and reliability.

The XD-020 features a single-stage rotary vane oil-sealed mechanism, making it ideal for various industrial applications, including packaging, lifting, transportation, and drying. It is designed to work in well-ventilated environments with ambient temperatures of 5-30°C and humidity ≤80%.

Key Features:

• ✅ High pumping rate (20 m³/h)
• ✅ Robust motor power (0.75 kW)
• ✅ Single-stage rotary vane oil-sealed design
• ✅ Reliable and efficient operation
• ✅ Suitable for low and medium vacuum fields
• ✅ Ideal for industrial applications like packaging, lifting, and drying
• ✅ Works in ambient temperatures of 5-30°C
• ✅ Compact and easy to maintain

Specifications:

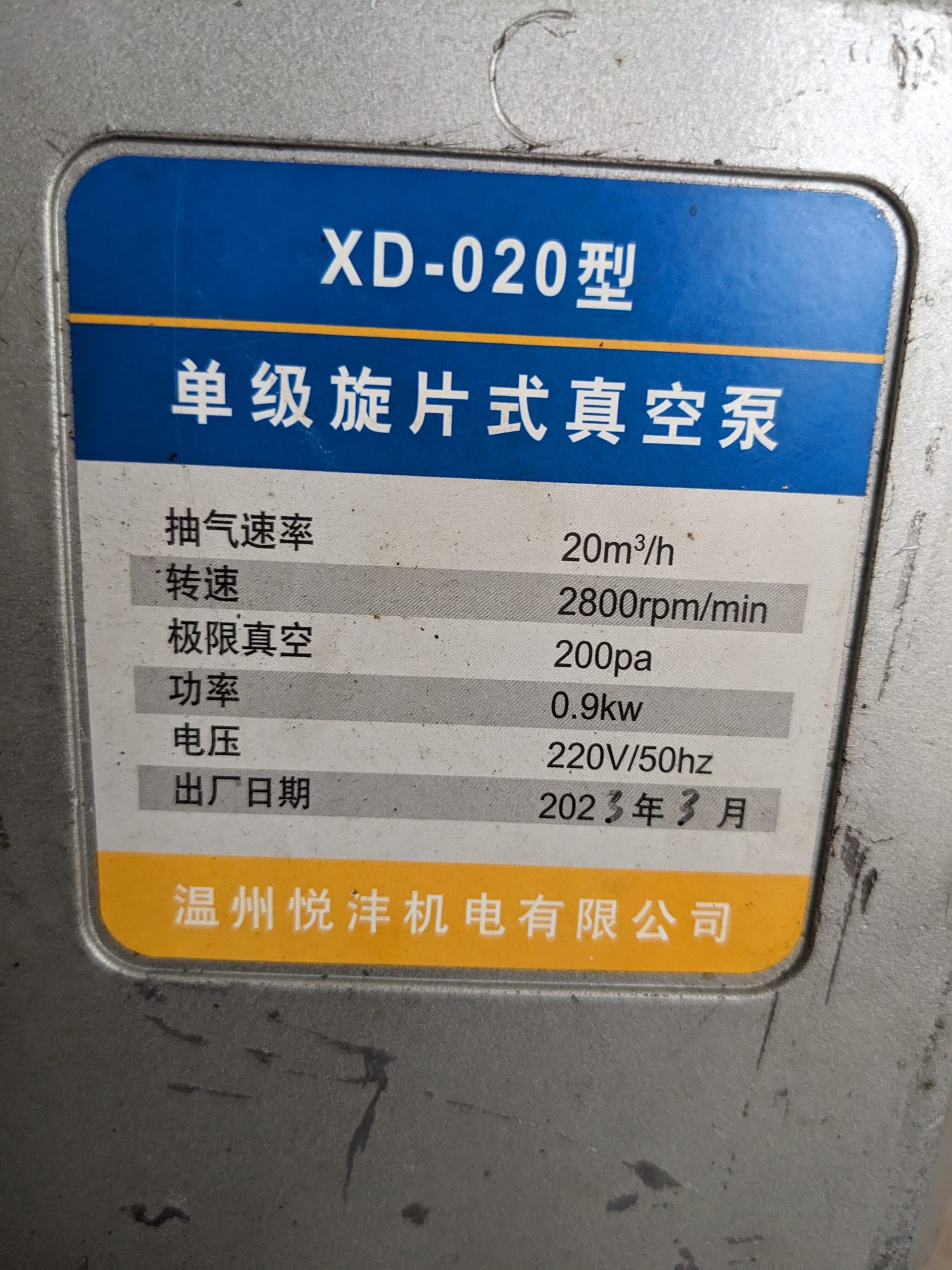

• Model: XD-020
• Pumping Rate: 20 m³/h
• Pressure Limit: 0.1 ~ 0.5 mbar
• Motor Power: 0.75 kW (Single phase 0.9 kW)
• Motor Speed: 2880 r/min
• Noise Level: <62 db
• Allowable Steam Pressure: 40 mbar
• Working Temperature: 82ºC
• Oil Volume: 0.5 L
• Weight: 13 kg
• Air Intake Thread: RP3/4″
• Dimensions: 650 x 300 x 280 mm

Enhance your industrial operations with the XD-020 Oil Lubricated Vacuum Pump, offering superior efficiency, reliability, and ease of use.
