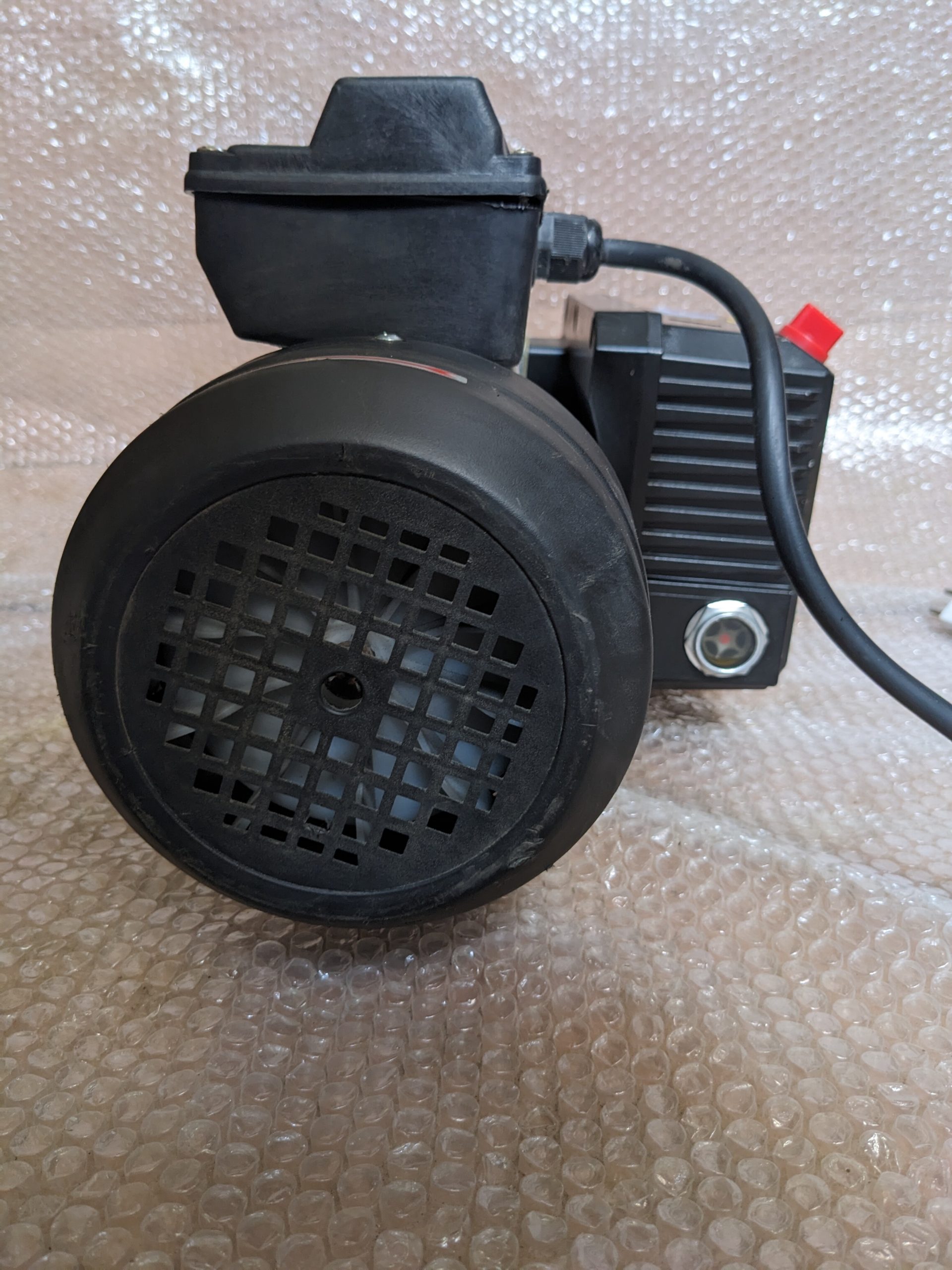

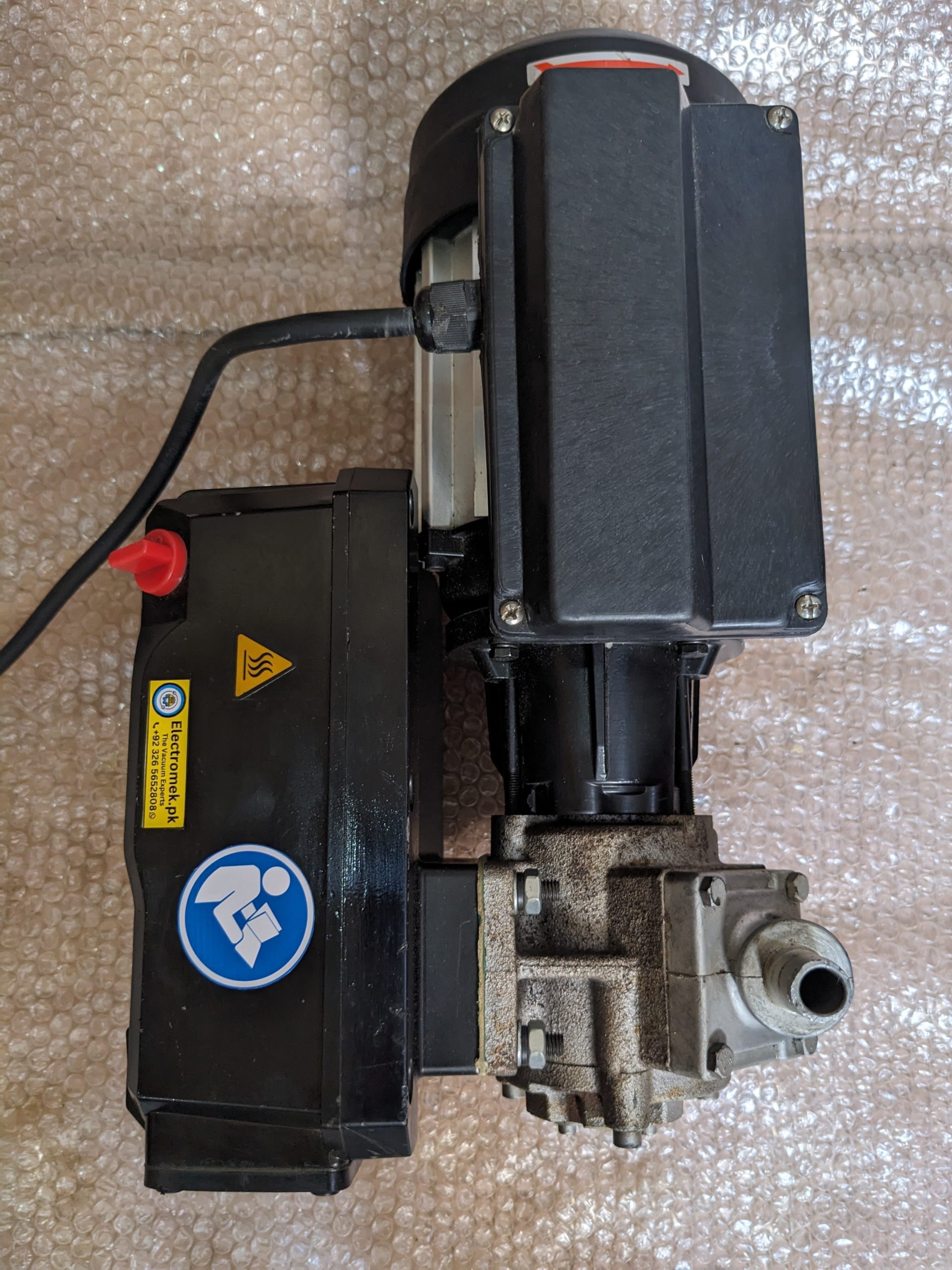

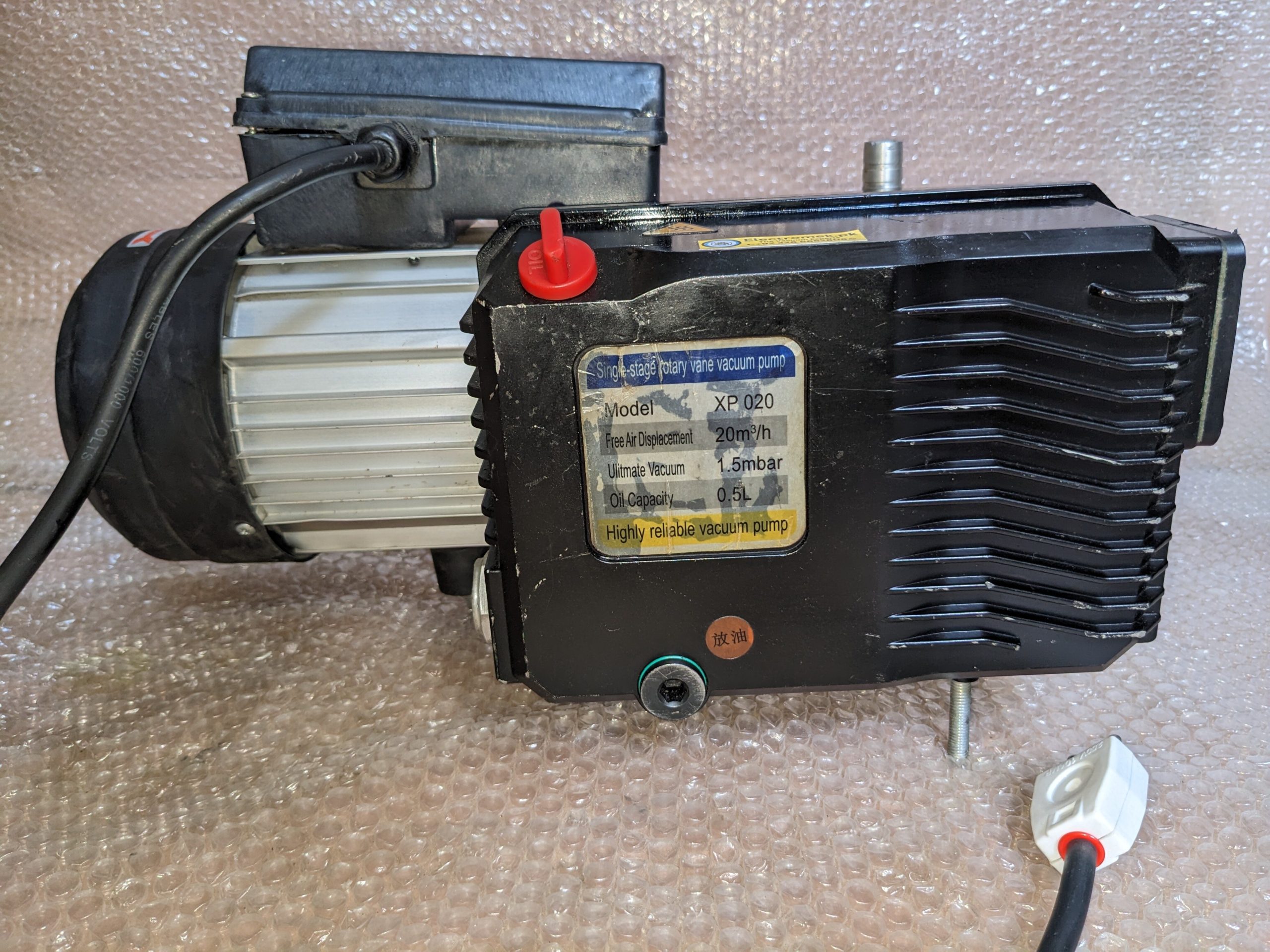

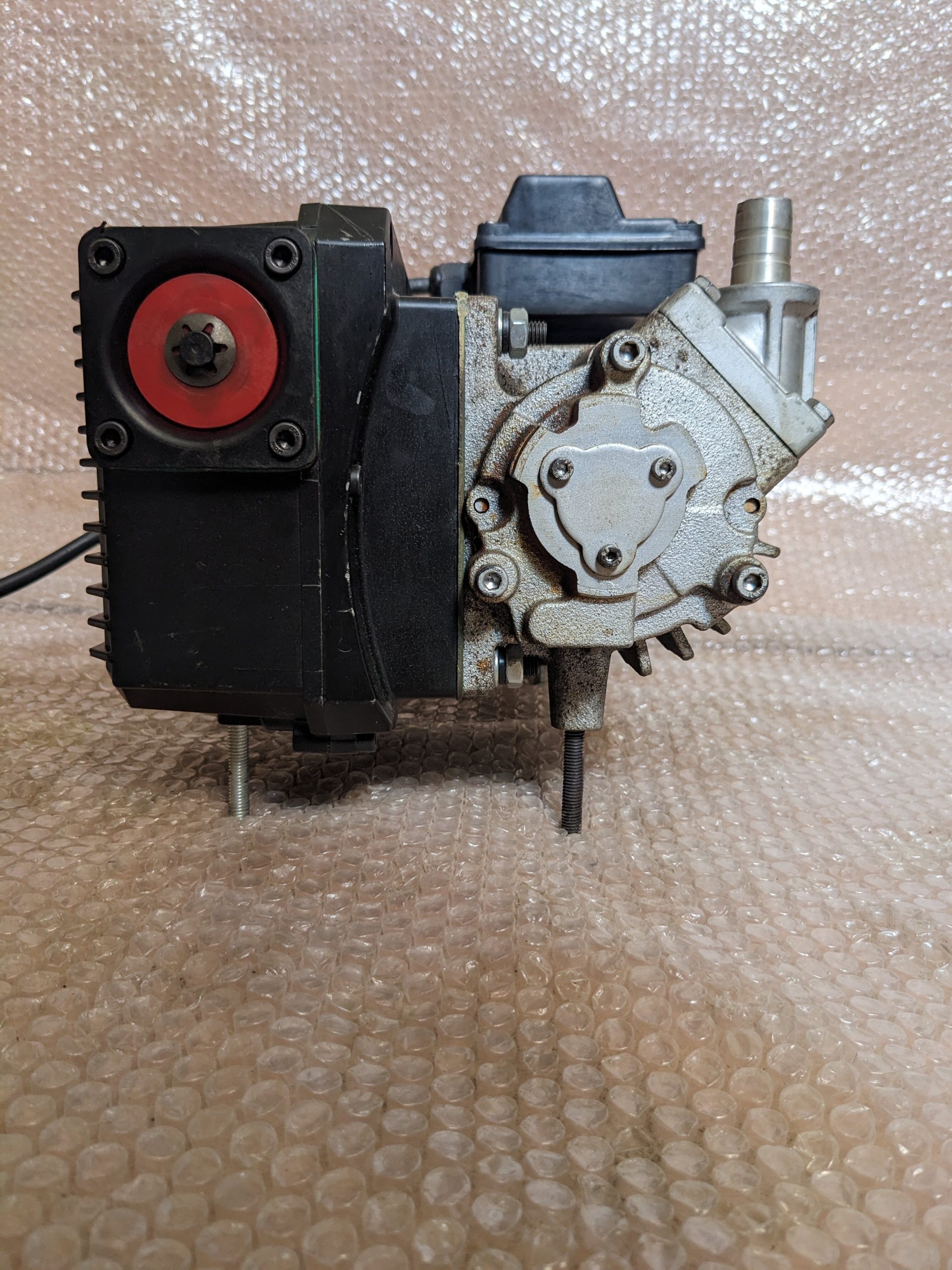

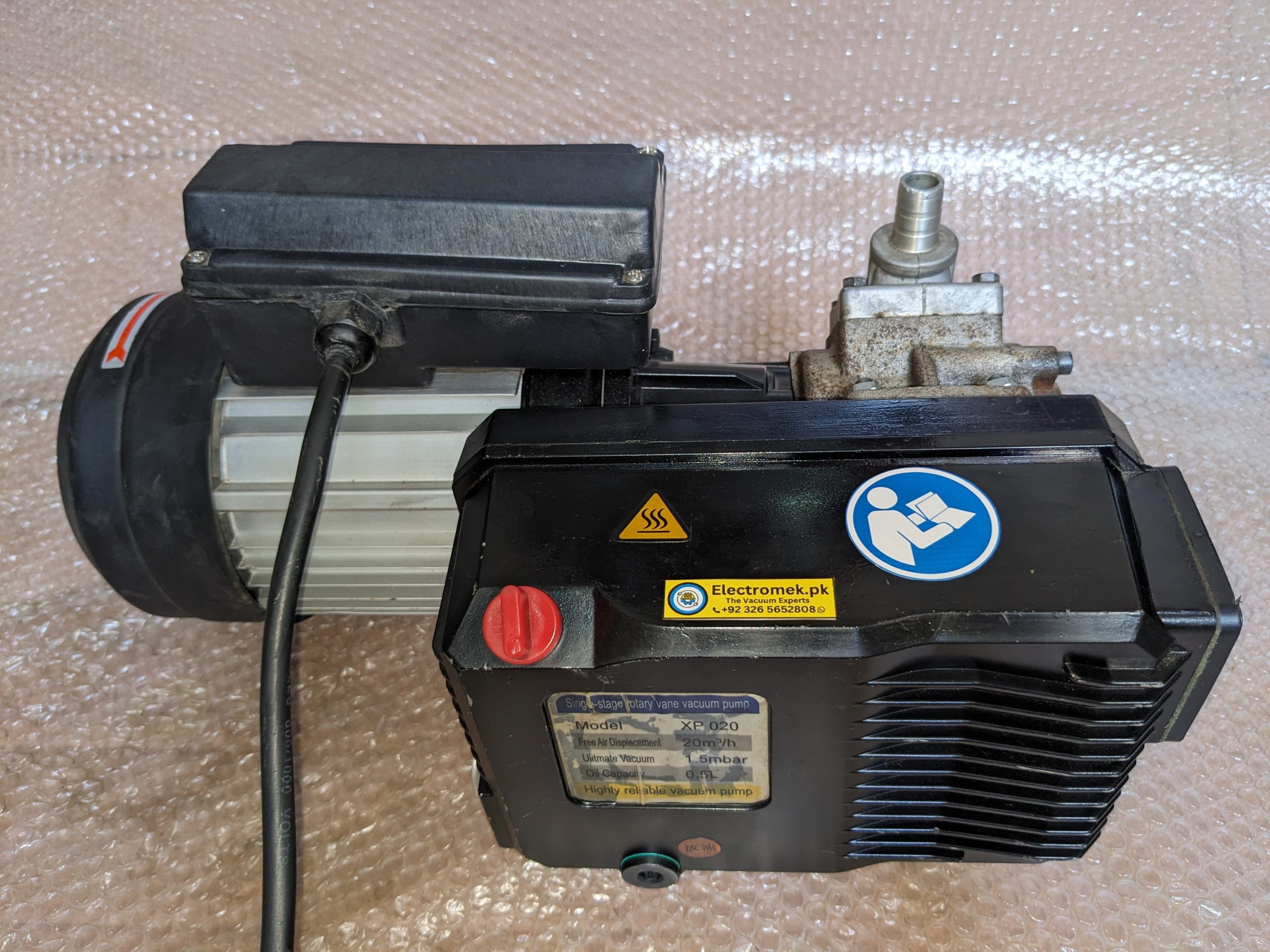

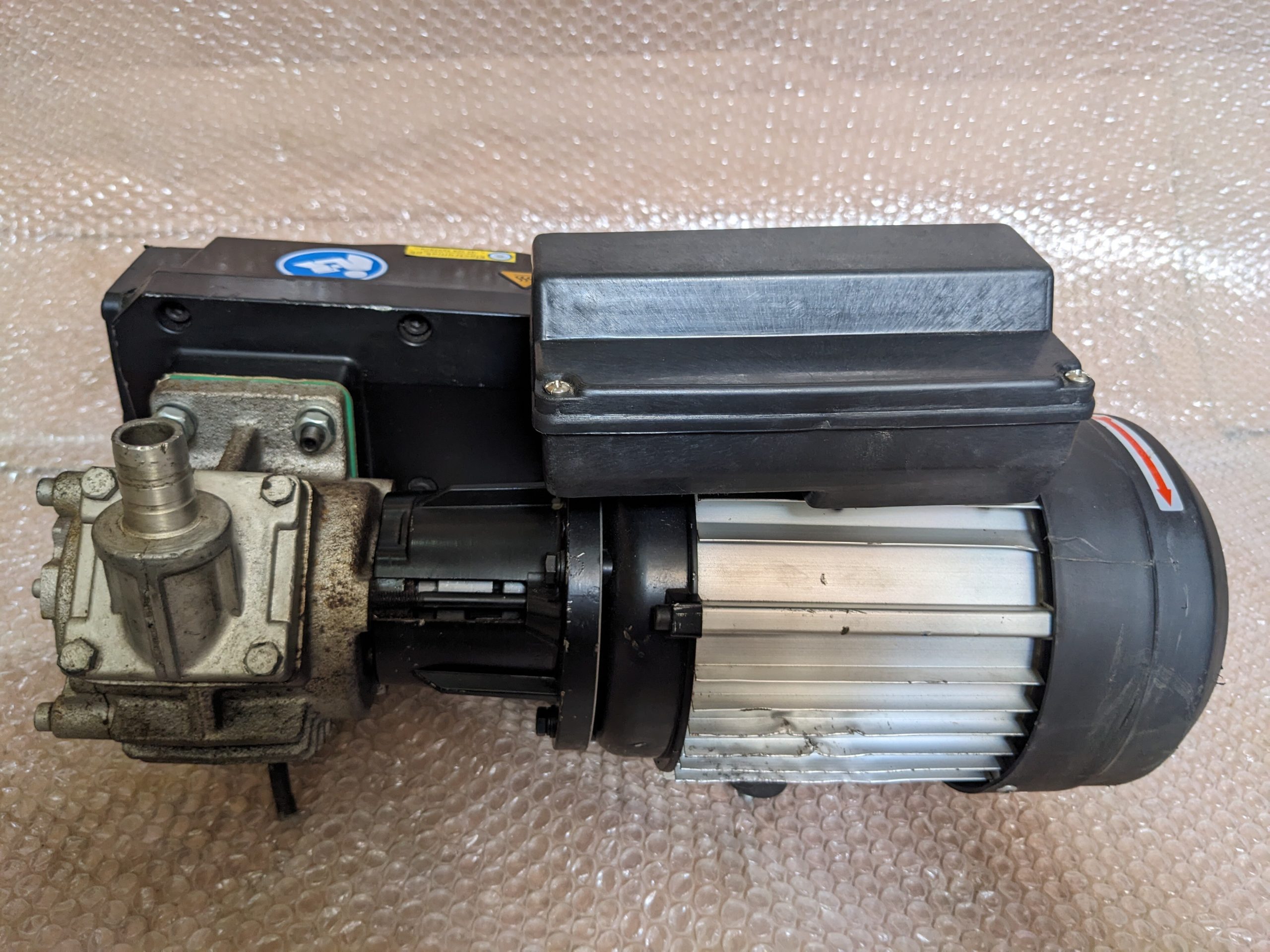

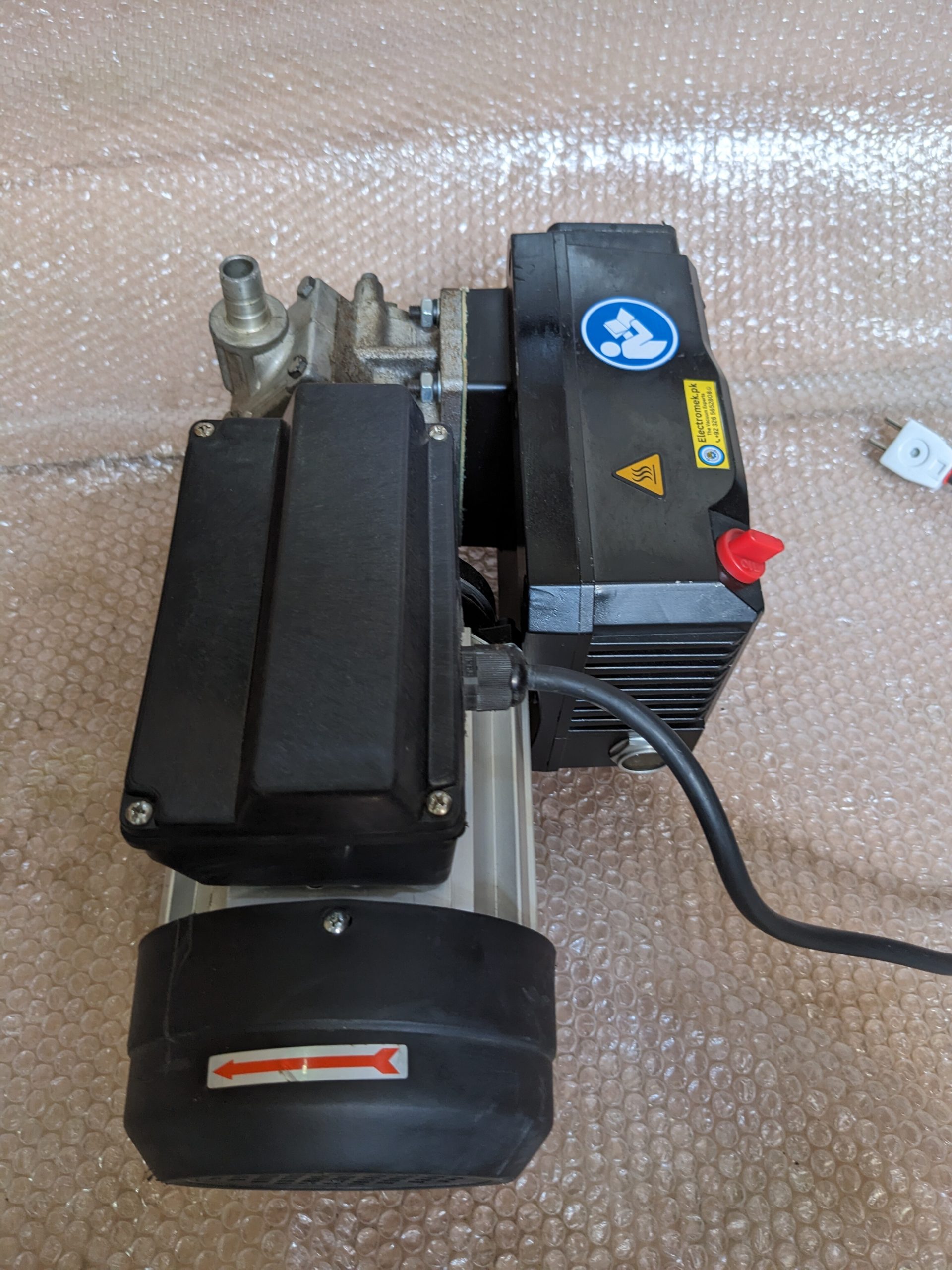

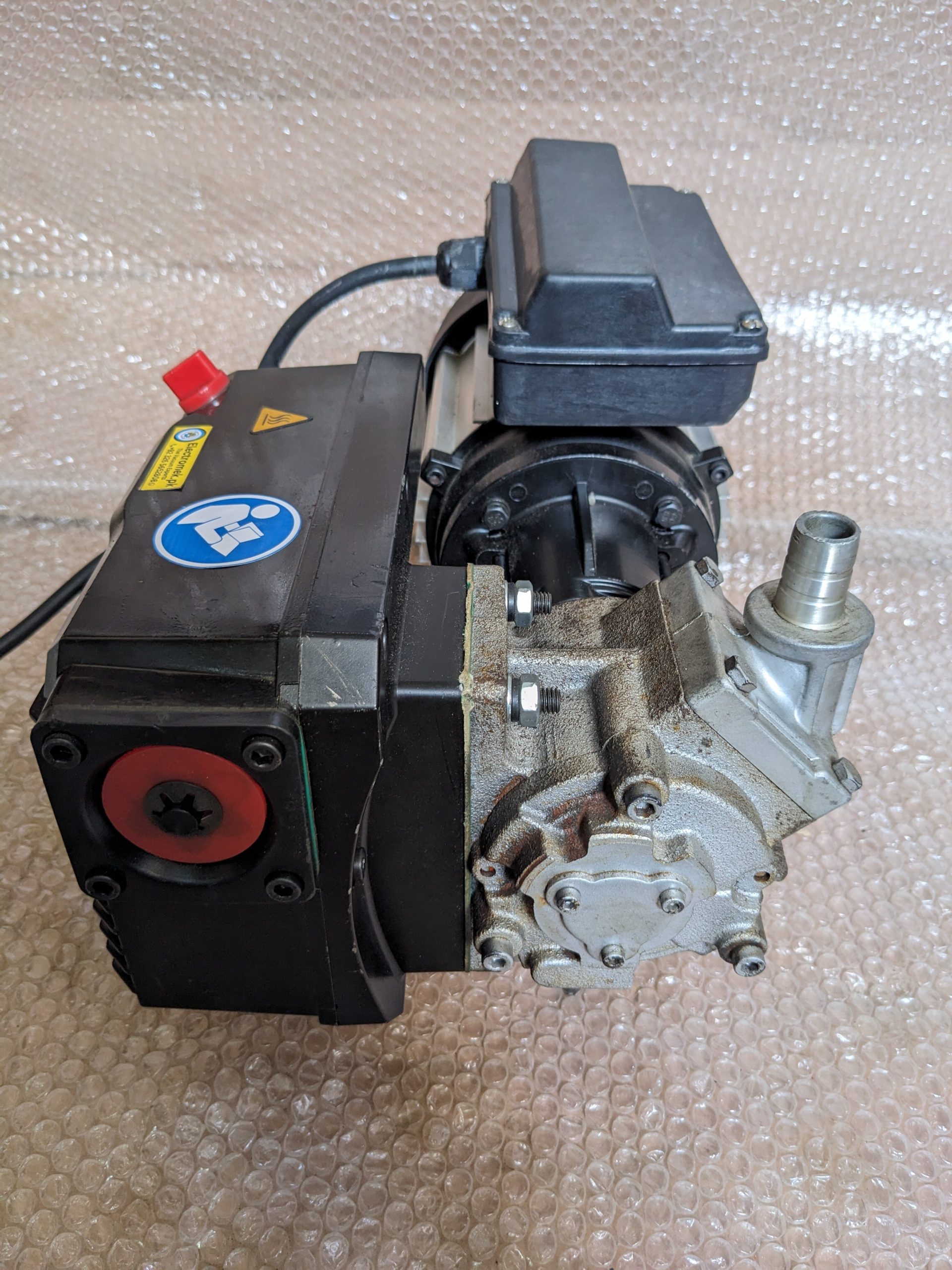

The XP-020 Vacuum Pump is a high-performance, oil-lubricated single-stage rotary vane pump, ideal for various industrial and laboratory applications. With a powerful 750W motor and a pumping rate of 20M³/hr, this pump delivers exceptional efficiency and reliability. Its low noise operation (<62 db) and easy maintenance make it perfect for settings requiring a quiet and durable vacuum solution.

Designed to handle air and dry gases, the XP-020 can also be combined with booster pumps for enhanced vacuum levels. Optional features include filters for dust and corrosive gases, and a gas ballast valve for moist air or condensable gases. Suitable for use in well-ventilated environments with ambient temperatures of 5-30ºC and humidity levels below 80%.

Key Features:

• ✅ High pumping rate (20 m³/hr)
• ✅ Low ultimate pressure (0.1 ~ 0.5 mbar)
• ✅ Efficient motor (750W)
• ✅ Quiet operation (<62 db)
• ✅ Suitable for various gases and applications
• ✅ Easy maintenance and reliable performance

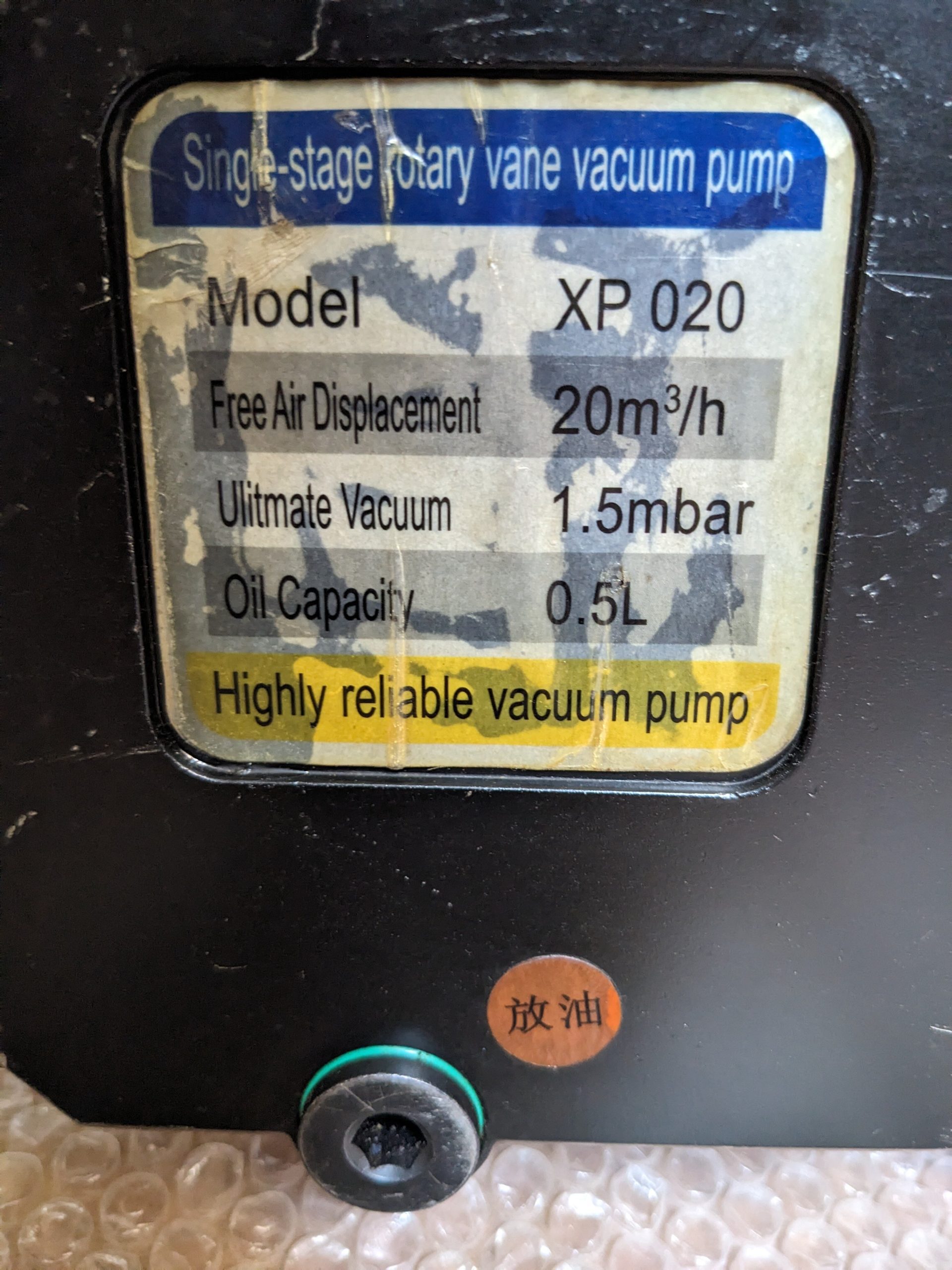

Specifications:

• Pumping Rate: 20 m³/hr
• Ultimate Pressure: 0.1 ~ 0.5 mbar
• Motor Power: 750W
• Motor Speed: 2880 r/min
• Noise Level: <62 db
• Allowable Steam Pressure: 40 mbar
• Working Temperature: 82ºC
• Oil Volume: 0.5 L
• Weight: 13 kg
• Air Intake Thread: RP3/4″
• Dimensions: 650 x 300 x 280 mm

Enhance your vacuum operations with the XP-020 Vacuum Pump, offering superior efficiency, reliability, and versatility for both standalone and integrated use.
